ThreadPilled

Think in threads. Ship in diagrams.

A collaborative visual-knowledge platform: real-time CRDT diagramming, a human-readable diagram DSL, a universal converter across Mermaid / D2 / nomnoml / Structurizr, and an embeddable engine that drops into seven frontend frameworks.

Timeline 2025 — present

Our role Product, design & engineering

Live threadpilled.com

Visit threadpilled.com ↗

Live TPD source to rendered diagram

ThreadPilled renderer

Untitled Diagram

SVG ENGINE

TPD v3

METADATA
  title: "Untitled Diagram"
  version: "3.0.0"
---

PILLS
pill("p1") {
  label: "Start"
  shape: "pill"
  position: (-66.1, 0)
  dimensions: (100, 44)
  gridX: -3.305
  gridY: 0
  gridWidth: 5
  gridHeight: 2.2
}
pill("p2") {
  label: "Process A"
  shape: "pill"
  position: (-4.6, 164)
  dimensions: (112, 44)
  gridX: -0.23
  gridY: 8.2
  gridWidth: 5.6
  gridHeight: 2.2
}
pill("p3") {
  label: "Process B"
  shape: "pill"
  position: (127.4, 328)
  dimensions: (112, 44)
  gridX: 6.37
  gridY: 16.4
  gridWidth: 5.6
  gridHeight: 2.2
}
pill("p4") {
  label: "Decision"
  shape: "pill"
  position: (75, 492)
  dimensions: (104, 44)
  gridX: 3.75
  gridY: 24.6
  gridWidth: 5.2
  gridHeight: 2.2
}
pill("p5") {
  label: "End"
  shape: "pill"
  position: (94.9, 656)
  dimensions: (100, 44)
  gridX: 4.745
  gridY: 32.8
  gridWidth: 5
  gridHeight: 2.2
}
---

THREADS
thread("t1") {
  from: "p1"
  to: "p2"
  sourceHandle: "bottom"
  targetHandle: "top"
  routeType: "bezier"
  waypoints: [(-16.1, 44), (51.4, 164)]
}
thread("t2") {
  from: "p2"
  to: "p3"
  sourceHandle: "right"
  targetHandle: "top"
  routeType: "bezier"
  waypoints: [(107.4, 186), (183.4, 328)]
}
thread("t3") {
  from: "p3"
  to: "p4"
  sourceHandle: "bottom"
  targetHandle: "top"
  label: "next"
  routeType: "bezier"
  waypoints: [(183.4, 372), (127, 492)]
}
thread("t4") {
  from: "p4"
  to: "p5"
  sourceHandle: "bottom"
  targetHandle: "top"
  routeType: "bezier"
  waypoints: [(127, 536), (144.9, 656)]
}
---

LAYOUT
  gridSize: 20
  version: "3.0.0"
---

Collaboration CRDT, multiplayer

Interop 25 conversion paths

Embed 7 frameworks, < 50KB

What it does

Real-time collaborative diagramming with live cursors, zero conflicts
A human-readable .tpd DSL with full parse / validate / round-trip
Universal converter — 25 conversion paths between diagram formats
Embeddable renderer for React, Vue, Svelte, Astro, SolidJS, Qwik & vanilla JS
Rich metadata, source archiving, and threaded comments
Editor reach: VS Code, Obsidian & browser extensions

Design

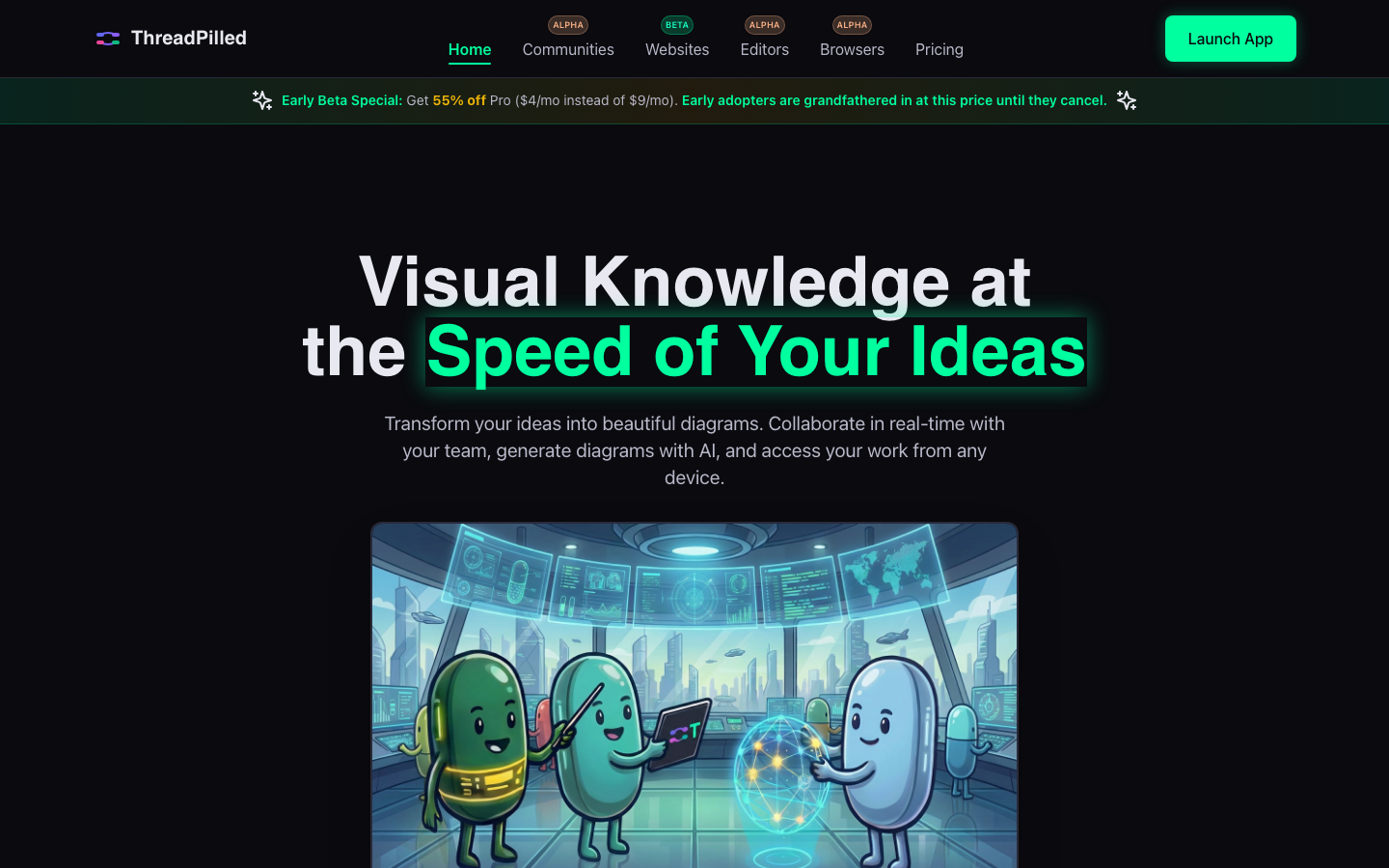

ThreadPilled public homepage — The public product entry point

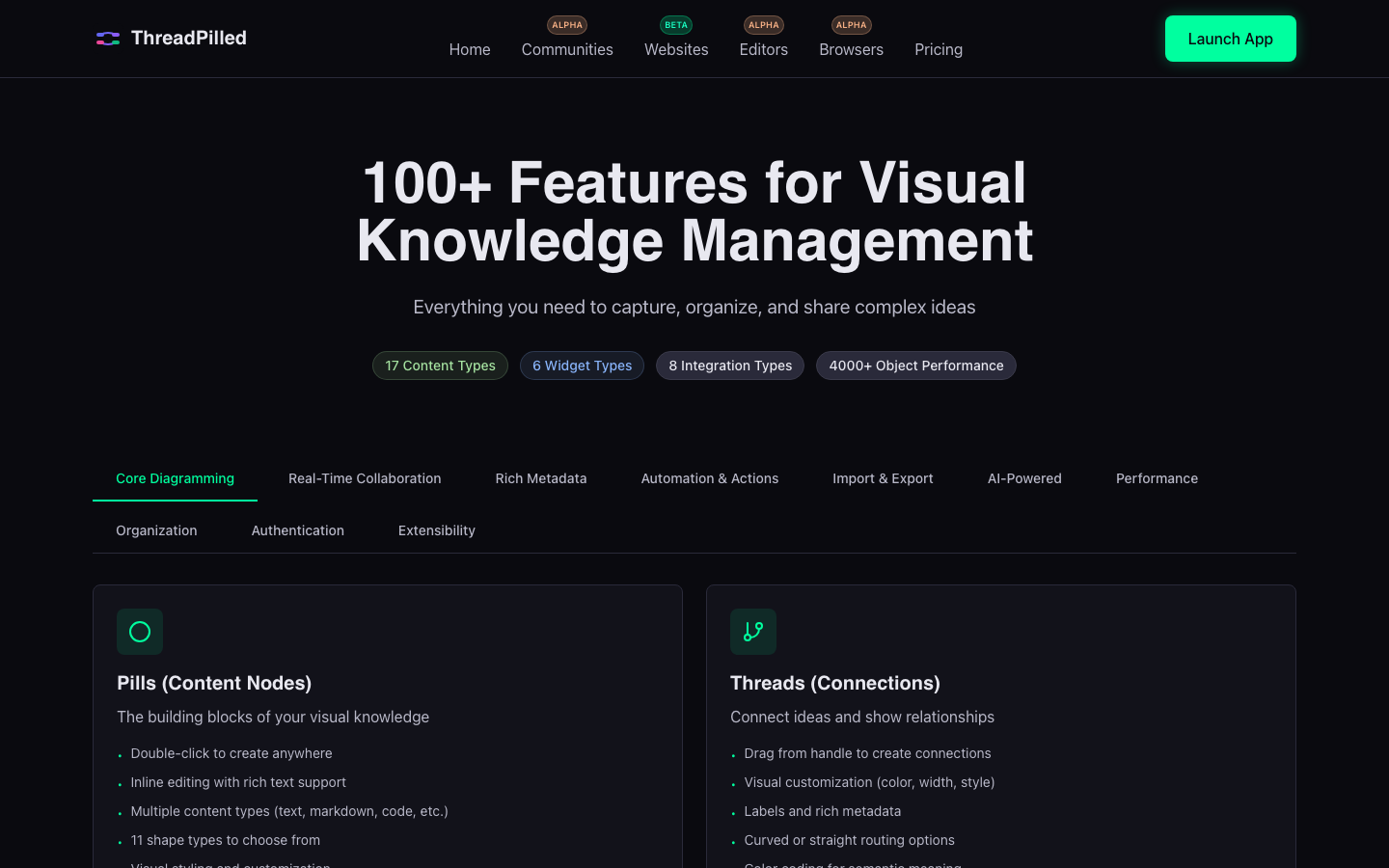

ThreadPilled features page — Diagrams as a shared working language

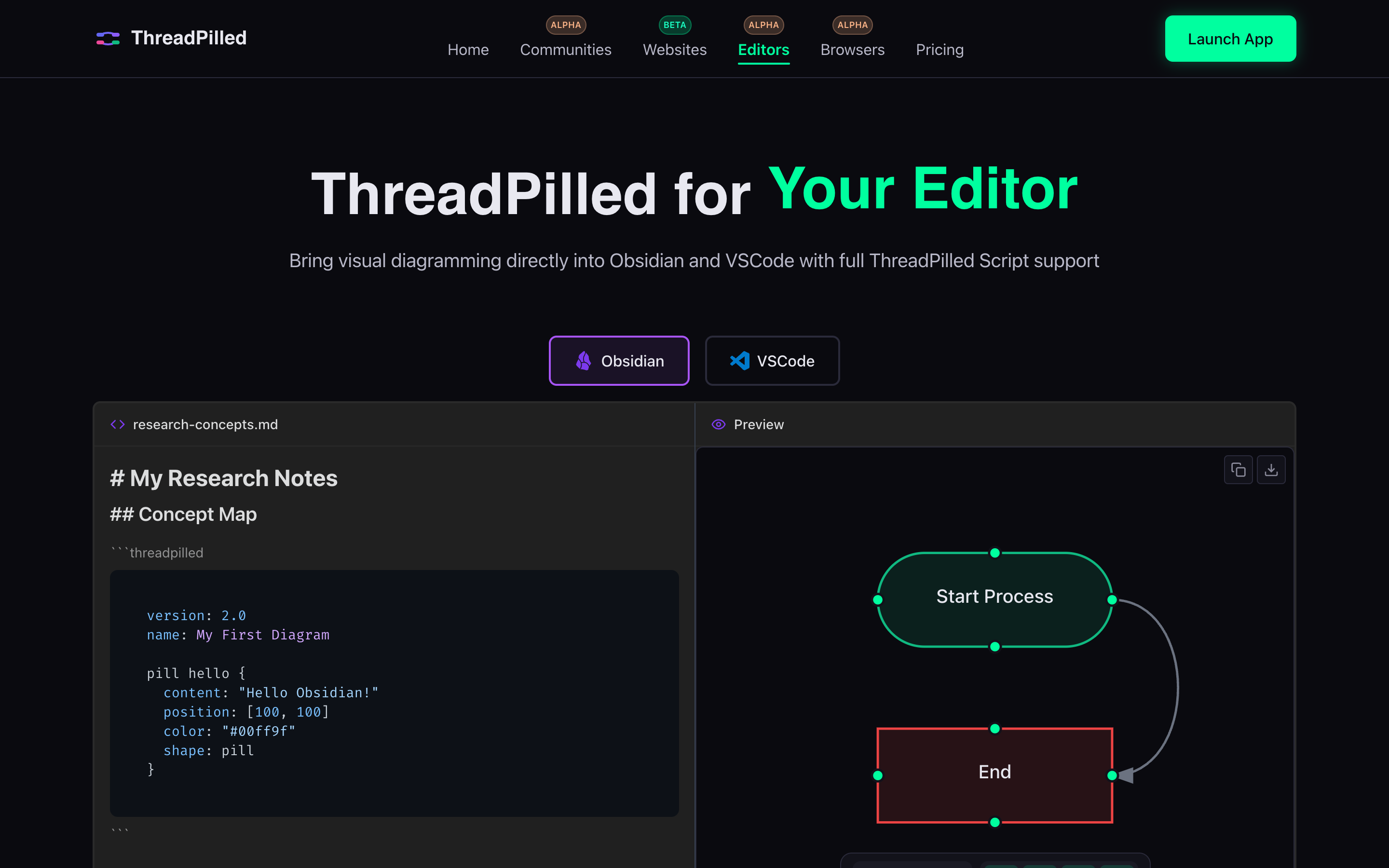

ThreadPilled editor integrations page — Keep diagram source close to the code and notes

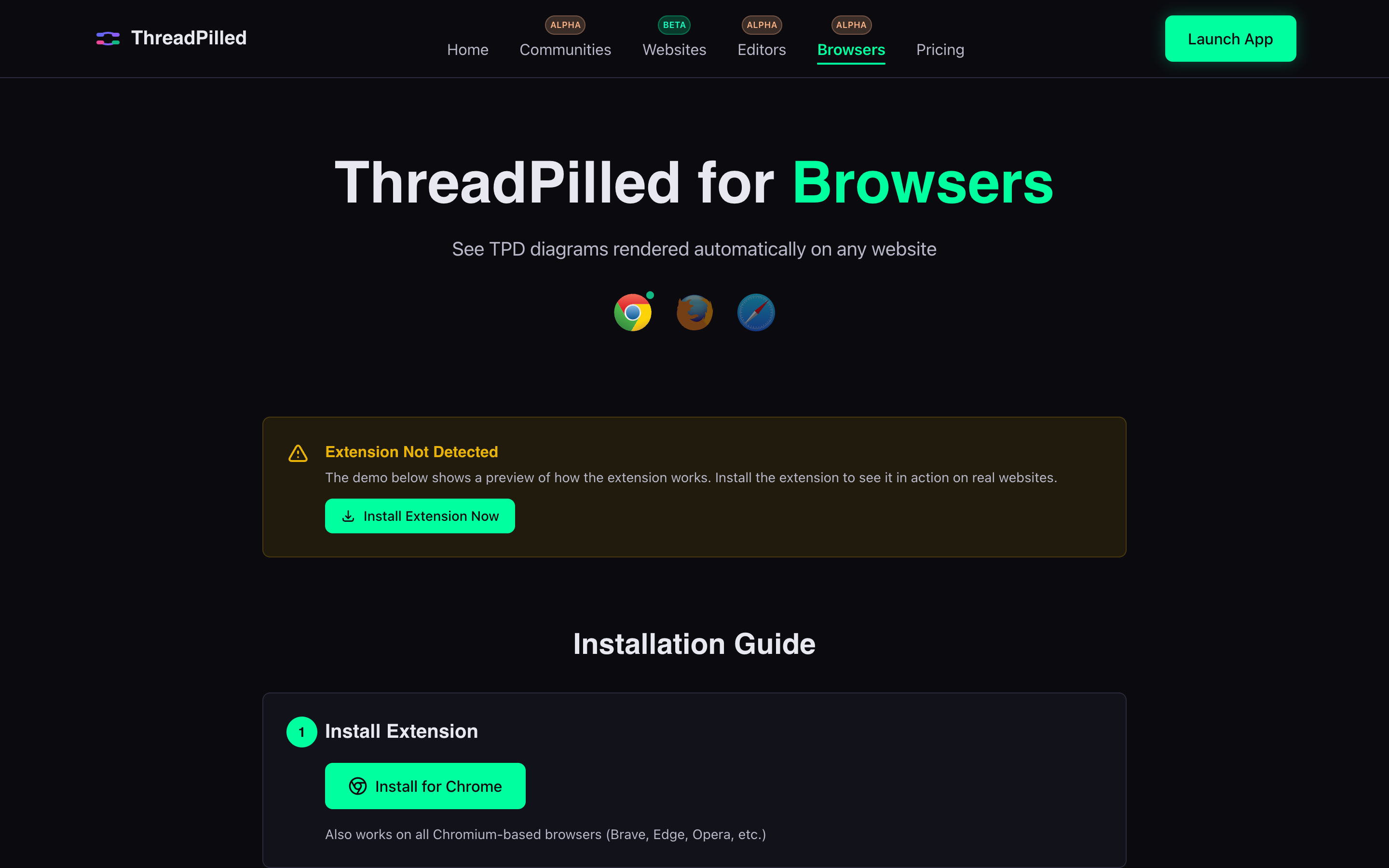

ThreadPilled browser integrations page — Bring diagram context into the browser workflow

Code

ThreadPilled combines a diagram language, a high-fidelity renderer, and collaborative editing so a diagram can remain readable in source control and useful on a live canvas.

TPD language

Human-readable source for nodes, threads, metadata, layout, and round-trip edits.

TPD DSL parser validator

Render engine

A programmable canvas with GPU-accelerated rendering where the browser supports it.

WebGPU WebGL fallback scene graph

Editor

Visual authoring surface for diagrams, metadata, comments, and source-aware changes.

React canvas UI

Collaboration

Concurrent diagram editing with conflict-safe shared state and live presence.

Yjs CRDT

Conversion plane

Interoperability between common diagram formats and a durable source archive.

Mermaid D2 Structurizr

Embed SDK

Portable renderer and viewer integrations for seven frontend ecosystems.

React Vue Svelte Astro

The map covers publicly described product components; it deliberately excludes private project and customer topology.
